Coreshooter "B60 GSI"

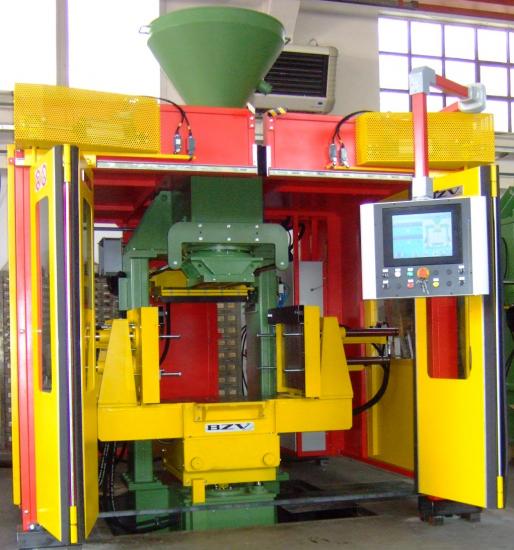

The automatic "B 60 GSI" sparaanime is an advanced machine designed for the production of cores through gasification, utilizing a shooting system for the hardening process. It is equipped with an intelligent hydraulic clamping system with grooved plates, capable of handling vertically divided core boxes and an automatic position recognition system.

Key Features

• Hydraulic Movements: The mechanical clamping system for core boxes is managed via intelligent hydraulic movements, allowing precise and secure control.
• Accessibility: Thanks to the hydraulic-command slide, the operator can easily remove hardened cores, maintaining free access to the upper part of the core box.

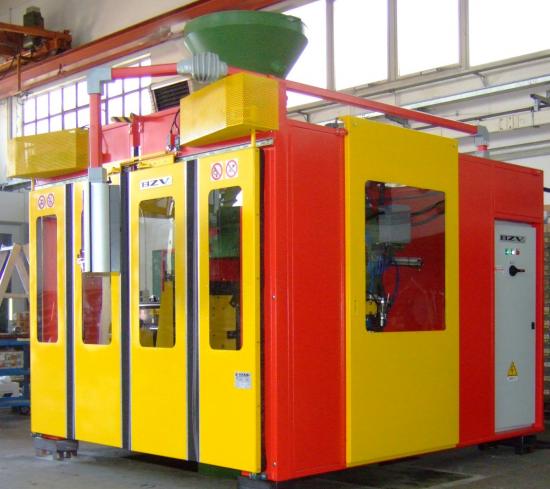

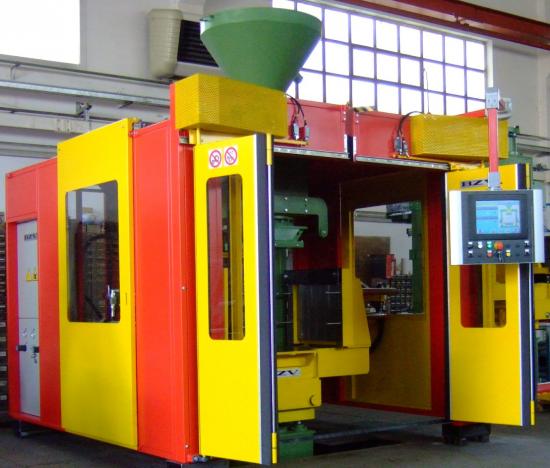

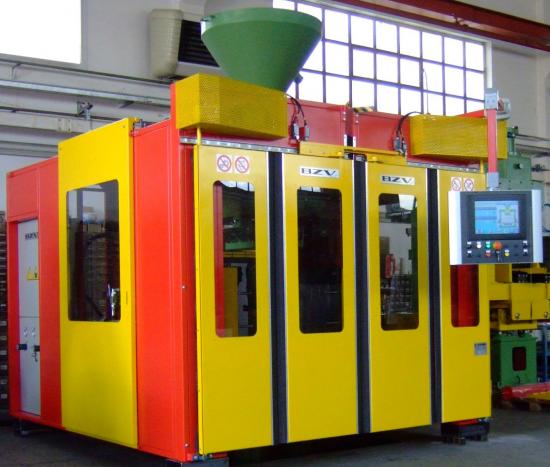

• Perimeter Closure: The machine features an integral perimeter closure with automatic doors to ensure safety during operation.
• Advanced Control: The integrated electrical panel includes a Siemens S7 PLC and an operator panel with multilingual functionality, allowing the storage and recall of operational recipes.

 Technical Specifications

• Shooting Capacity:
  • Max single shot: 90 kg
  • Max double shot: 160 kg
  • Max triple shot: 230 kg
• Cycle Time: 35 seconds when empty.
• Minimum Compressed Air Pressure: 6 bar.
• Minimum Extraction Flow Rate: 3500 Nmc/h.

Hydraulic Clamping Group

• Dimensions of the plates: 850 mm x 502 mm.
• Max distance between the plates: 994 mm.
• Stroke of each closure hydraulic cylinder: 400 mm.
• Hydraulic clamping force: 3000 kg.

Maximum Dimensions of Core Boxes

• Vertical Division:
  • Length: 850 mm
  • Width: 250 mm + 250 mm
  • Height: 700 mm
• Horizontal Division:
  • Length: 850 mm
  • Width: 900 mm
  • Height: 250 mm + 250 mm

Shooting Head and Gasification Plate

• Universal shooting head dimension: 600 mm x 550 mm.
• Gasification plate dimension: 600 mm x 550 mm.

Table and Slide

• Stroke of the table lifting cylinder: 300 mm.
• Lifting force: 5500 kg.
• Slide dimensions: 845 mm x 660 mm.
• Horizontal stroke of the hydraulic slide: 600 mm.

Hydraulic Unit and Oil-Hydraulic System

• Tank capacity: 150 liters.
• Operating pressure: 110 Bar.
• Components: Bosch-Rexroth.

Safety

The machine is designed in accordance with European safety standards, equipped with CE marking and a declaration of conformity.

 Dimensions and Weight

• Overall dimensions: 3792 mm (length) x 2721 mm (width) x 3666 mm (height).
• Net weight: 5000 kg.

 Components Used

• Hydraulic components: Bosch-Rexroth, ARON.
• Hydraulic cylinders: Conforti Oleodinamica, Atos Oleodinamica.
• PLC and operator panels: Siemens S7, OP7, OP 270.
