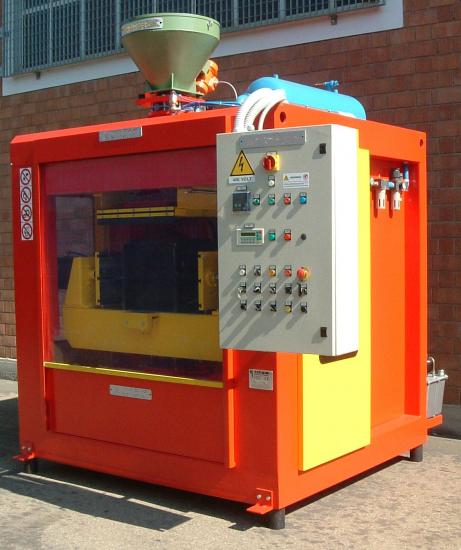

Coreshooter COMPACT 12

The "COMPACT 12" Automatic Core Shooter is a state-of-the-art machine designed for the production of cores, utilizing gasification processes for hardening. This machine is equipped with advanced features to enhance operational efficiency and ensure user safety.

Key Features:

• Pneumatic Clamping System:
  The machine comes standard with a clamping system featuring grooved plates for securely closing vertical core boxes driven by pneumatic cylinders. The clamping system can be excluded from the automatic cycle when not in use.

• Robust Design:
  This core shooter is engineered for efficient core production, featuring:

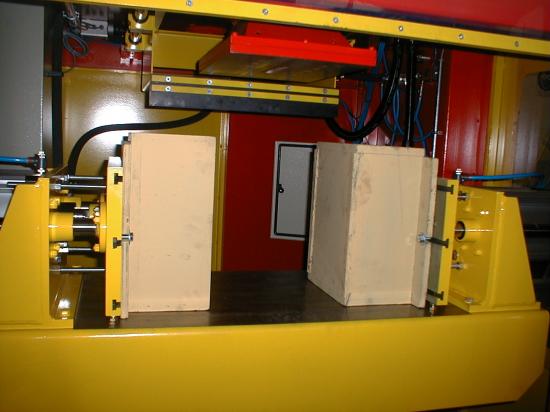

  • Right and left clamps with a mechanical fastening system (T-slots) and pneumatic movement on both sides.

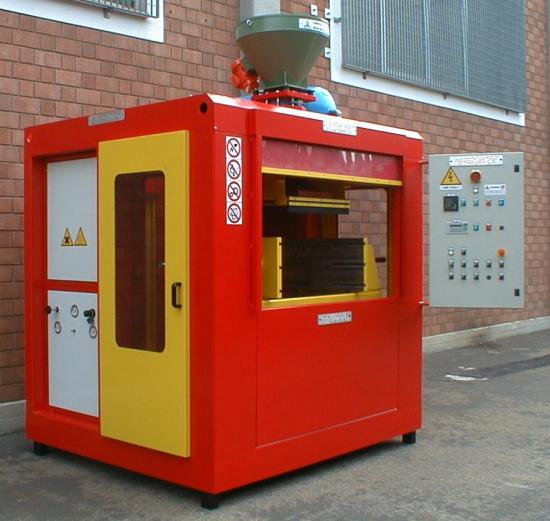

  • A compact integral perimeter enclosure, complete with a roll-up door for operator access.
  • Optional integration of a gasifier within the perimeter enclosure upon request.
  • A work surface height of 1000 mm, ensuring operator comfort without the need for foundations or floor holes.

• Electrical Control System:
  The electrical panel is directly mounted to the enclosure and features a Siemens S7 PLC with an OP3 display. The multilingual operating software allows configuration of:

  • Clamps activated or excluded from the automatic cycle.
  • Single or double shot options.
  • Load frequency.
  • Gasification time.
  • Washing time.
  • The possibility to insert an intermediate cycle stoppage for the introduction of armature or hooks after the shooting cycle.

• Maintenance Access:
  The perimeter enclosure includes side doors for maintenance access, while the operator side features an automatically controlled transparent PVC roll-up closure.

• Safety Compliance:
  The core shooter employs a filterless shooting system, allowing operation with reduced shooting pressures. It is constructed in compliance with European safety standards, carries CE marking, and comes with a corresponding declaration of conformity.

Technical Specifications:

• Maximum Shooting Capacity:
  • Single Shot: 16 kg
• Vibrating Hopper Capacity:
  • 50 kg
• Pneumatic Clamping System:
  • Clamp Plate Dimensions:
    • Length: 500 mm
    • Height: 330 mm
  • Maximum Distance Between Plates: 800 mm
• Maximum Core Box Dimensions:
  • Length: 500 mm
  • Width: 400 + 400 mm
  • Height: 530 mm
• Shooting Head Dimensions:
  • 350 mm x 500 mm
• Gasification Plate Dimensions:
  • 500 mm x 500 mm
• Clearance Between Gasification Plate and Table:
  • 550 mm

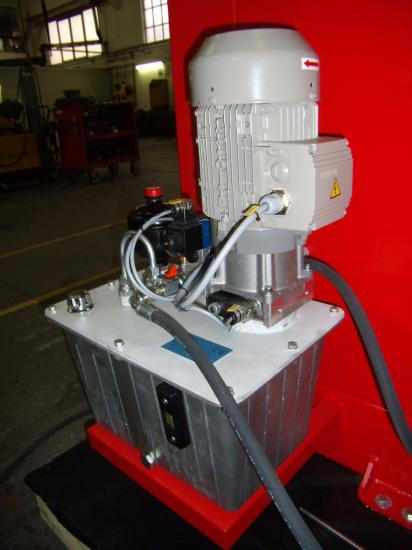

• Hydraulic Cylinder Stroke for Table Lift:
  • 200 mm
• Empty Cycle Time:
  • 30 seconds
• Power Supply:
  • 400V three-phase
• Auxiliary Voltage:
  • 110V AC
• Minimum Compressed Air Pressure:
  • 6 bar
• Compressed Air Connection:
  • 1 inch
• Average Air Consumption per Cycle:
  • 250 NL
• Installed Electric Power (excluding gasifier):
  • 3 kW
• Minimum Required Suction Capacity:
  • 2,000 Nmc/hour
• Overall Dimensions:
  • Length: 2200 mm
  • Width: 2600 mm
  • Height: 2730 mm
• Net Weight of the Machine:
  • 3000 kg
