Coreshooter COMPACT 12 S

The "COMPACT 12 S" Automatic Core Shooter is an advanced machine designed for the production of cores, featuring gasification processes for hardening. It is built to enhance operational efficiency while ensuring user safety and comfort.

Key Features:

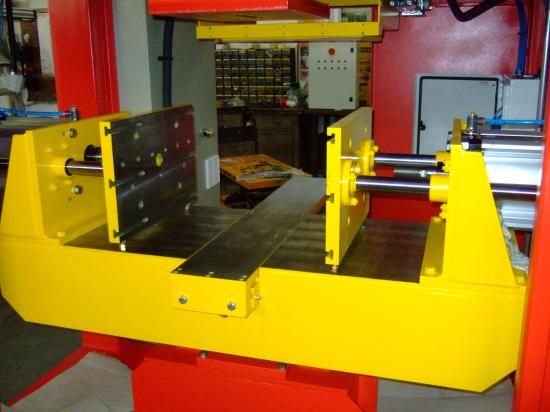

• Pneumatic Clamping System:
  Equipped with a clamping system featuring grooved plates, this machine securely closes vertical core boxes using pneumatic cylinders. If not in use, the clamping system can be excluded from the automatic cycle.

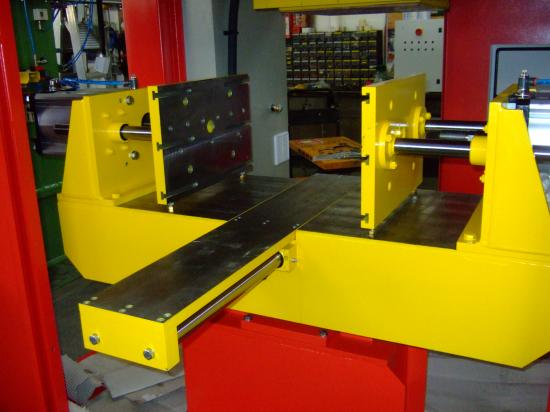

• Pneumatic Horizontal Slide:
  A pneumatic horizontal slide with chrome guide rails allows operators to use the machine for both horizontal core boxes and open-top configurations. The operation of the slide can be toggled in or out of the automatic cycle using the PLC keyboard.

• Robust Design:
  The core shooter is designed to carry out all processes utilizing gasification for the hardening of cores, including:

  • Right and left clamps with a mechanical fastening system (T-slots) featuring pneumatic movement on both sides.

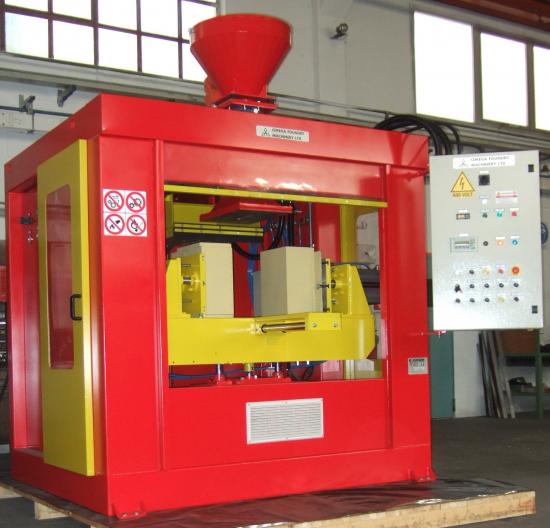

  • A compact integral perimeter enclosure with a roll-up door for operator access.
  • Optional integration of a gasifier within the perimeter enclosure, if requested.
  • A work surface height of 1000 mm for operator comfort, with no need for foundations or floor holes for installation.

• Electrical Control System:

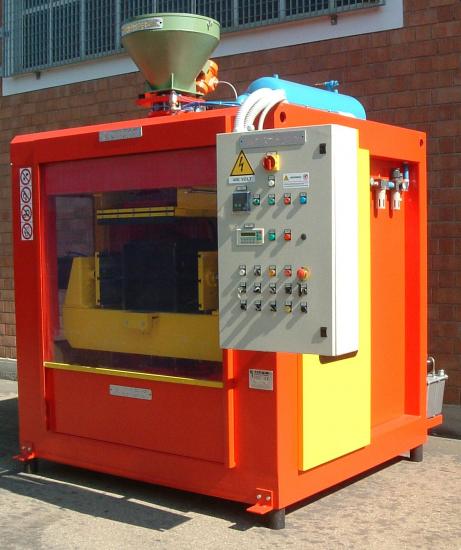

  The electrical panel is mounted directly on the enclosure, featuring a Siemens S7 PLC with an OP3 display. The multilingual operational software allows configuration of:

  • Clamps activated or excluded from the automatic cycle.
  • Slide activated or excluded from the automatic cycle.
  • Single or double shot options.
  • Load frequency.
  • Gasification and washing times.
  • Intermediary cycle stoppage for armature or hook insertion after the shooting cycle.

• Maintenance Access:
  The perimeter enclosure includes side doors for maintenance access, while the operator side features an automatically controlled transparent PVC roll-up closure.

• Safety Compliance:
  The core shooter operates without a filter, enabling low shooting pressures. It is built in compliance with European safety standards, comes with CE marking, and includes a corresponding declaration of conformity.

Technical Specifications:

• Maximum Shooting Capacity:
  • Single Shot: 16 kg
• Vibrating Hopper Capacity:
  • 50 kg
• Pneumatic Clamping System:
  • Clamp Plate Dimensions:
    • Length: 500 mm
    • Height: 330 mm
  • Maximum Distance Between Plates: 800 mm
• Maximum Core Box Dimensions:
  • Length: 500 mm
  • Width: 400 + 400 mm
  • Height: 530 mm
• Shooting Head Dimensions:
  • 350 mm x 500 mm
• Gasification Plate Dimensions:
  • 500 mm x 500 mm
• Clearance between Gasification Plate and Table:
  • 550 mm
• Hydraulic Cylinder Stroke for Table Lift:
  • 200 mm
• Slide Dimensions:
  • Length: 1157 mm
  • Width: 200 mm
• Slide Stroke:
  • 450 mm
• Empty Cycle Time:
  • 30 seconds
• Power Supply:
  • 400V three-phase
• Auxiliary Voltage:
  • 110V AC
• Minimum Compressed Air Pressure:
  • 6 bar
• Compressed Air Connection:
  • 1 inch
• Average Air Consumption per Cycle:
  • 250 NL
• Installed Electric Power (excluding gasifier):
  • 3 kW
• Minimum Required Suction Capacity:
  • 2,000 Nmc/hour
• Overall Dimensions:
  • Length: 2200 mm
  • Width: 2600 mm
  • Height: 2730 mm
• Net Weight of the Machine:
  • 3000 kg
