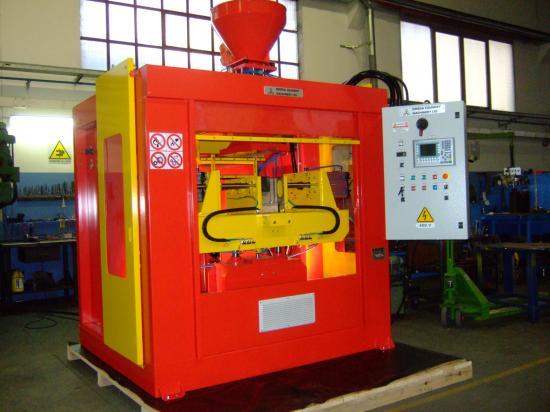

Coreshooter COMPACT 12 S Vacuum System

The "COMPACT 12 S" Automatic Core Shooter is a state-of-the-art machine designed for the efficient production of cores utilizing gasification processes for hardening. It is specifically engineered to enhance productivity while ensuring operator safety and comfort.

Key Features:

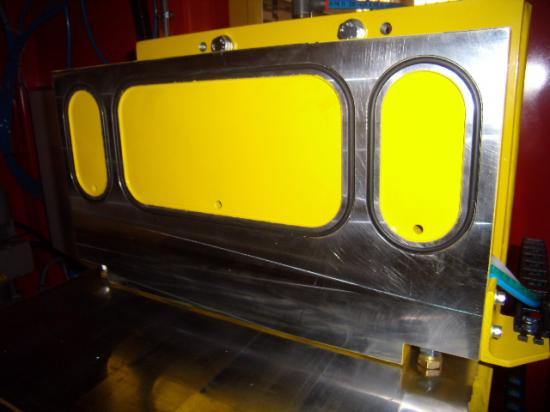

• Vacuum Clamping System:

  • The machine comes standard with a vacuum clamping system that secures vertical core boxes through a pneumatic cylinder mechanism, allowing for precise and stable operation.
  • The clamping system can be disabled during operation if not in use, providing flexibility for various production needs.

• Pneumatic Horizontal Slide:

  • A horizontal slide, driven by pneumatic controls and equipped with chrome guide rails, facilitates the use of horizontal core boxes or open-top core boxes. This feature enhances the machine's versatility.
  • The operation of the slide can be integrated or excluded from the automatic cycle via the PLC keyboard.

• Integrated Features:

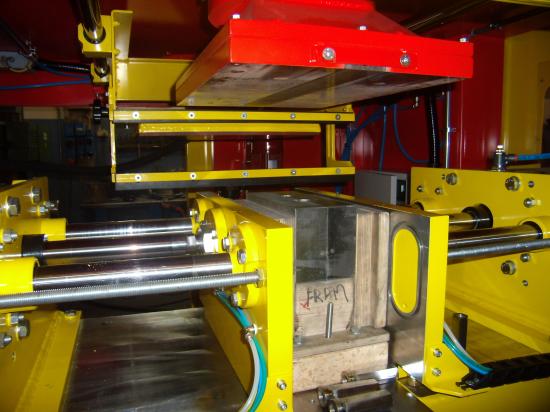

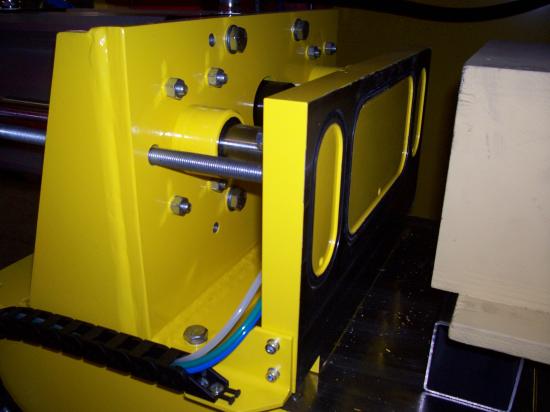

  • Right and left pneumatic clamping systems with mechanical fastening using T-slots ensure reliable fixation of core boxes.
  • A compact perimeter enclosure is fitted with a roll-up door for operator access, enhancing safety and ease of maintenance.
  • Optional integration of a gasifier within the perimeter enclosure is available.

• User-Friendly Operation:

  • The machine is designed with a work surface height of 1000 mm for optimal comfort during operation.
  • No foundation or floor holes are required for installation, making it adaptable to various workspace configurations.
  • The electrical panel is directly mounted on the enclosure and features a Siemens S7 PLC with an OP3 display. The multilingual software allows operators to configure various parameters, including:
    • Activation or deactivation of the clamps from the automatic cycle
    • Integration or exclusion of the horizontal slide from the automatic cycle
    • Selection of single or double shooting
    • Load frequency adjustment
    • Gasification and washing times
    • Intermediary cycle stoppage for armature or hook insertion after the shooting cycle

• Safety Compliance:

  • The machine is built according to European safety standards and is equipped with CE marking and a corresponding declaration of conformity, ensuring adherence to regulatory requirements.

Technical Specifications:

• Maximum Shooting Capacity:
  • Single Shot: 16 kg
• Vibrating Hopper Capacity: 50 kg
• Pneumatic Clamping System:
  • Clamp Plate Dimensions:
    • Length: 500 mm
    • Height: 330 mm
  • Maximum Distance Between Plates: 800 mm
• Maximum Core Box Dimensions:
  • Length: 500 mm
  • Width: 400 + 400 mm
  • Height: 530 mm
• Shooting Head Dimensions: 350 mm x 500 mm
• Gasification Plate Dimensions: 500 mm x 500 mm
• Clearance between Gasification Plate and Table: 550 mm
• Hydraulic Cylinder Stroke for Table Lift: 200 mm
• Slide Dimensions:
  • Length: 1157 mm
  • Width: 200 mm
• Slide Stroke: 450 mm
• Empty Cycle Time: 30 seconds
• Power Supply: 400V three-phase
• Auxiliary Voltage: 110V AC
• Minimum Compressed Air Pressure: 6 bar
• Compressed Air Connection: 1 inch
• Average Air Consumption per Cycle: 250 NL
• Installed Electric Power (excluding gasifier): 3 kW
• Minimum Required Suction Capacity: 2,000 Nmc/hour
• Overall Dimensions:
  • Length: 2200 mm
  • Width: 2600 mm
  • Height: 2730 mm
• Net Weight of the Machine: 3000 kg
