CORESHOOTER PF 12

The “PF 12” shooting machine is an advanced device designed for the production of cores using the Cold-Box process. This machine can handle both vertically and horizontally divided core boxes, operating fully automatically with a pre-set single cycle that can be customized.

Key Features:

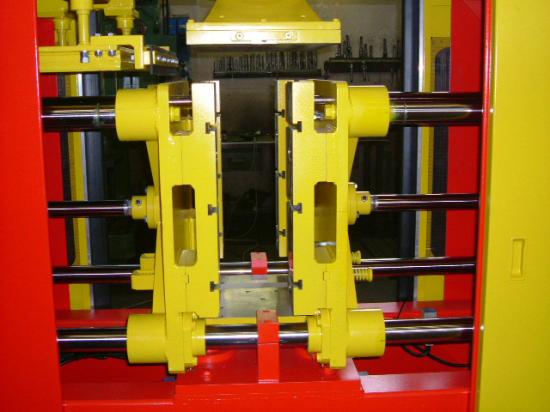

• Intelligent hydraulic clamping group: Equipped with grooved plates, the closing system is managed by hydraulic cylinders with automatic position recognition.
• Types of core boxes:
  • Divided into two parts vertically
  • Divided into three parts (two halves plus a bottom)
  • Divided into two parts horizontally
  • Single-piece open-top core boxes
• Movement: All movements of the core box parts are carried out via hydraulic controls.

Components and Operation:

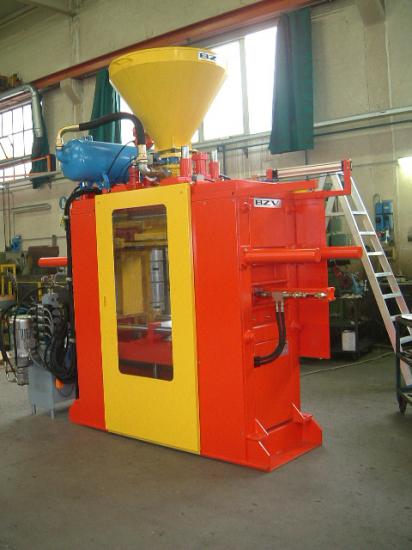

• Mobile upper part: Composed of a shooting head, a butterfly valve for sand loading, and a vibrating hopper, controlled by hydraulic cylinders and electric limit switches.
• Feeding hopper: Equipped with an electric vibrator and sized to hold the entire sand load.
• Gas plate: Mounted on a cart with scrapers for cleaning the shooting head.

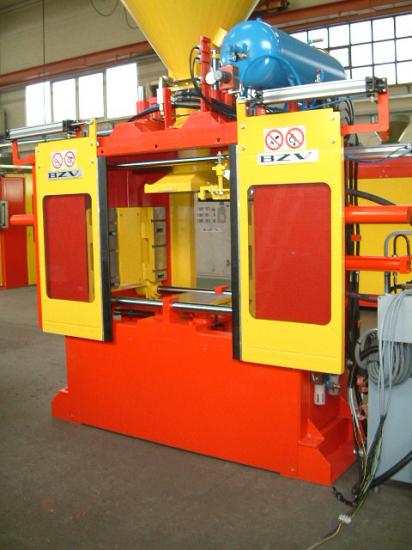

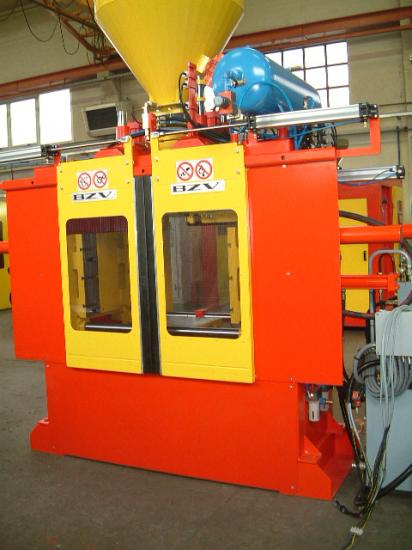

• Closing system: Includes perimeter closures that ensure operator safety with access controlled by pneumatic sliding doors.

Hydraulic System:

• Hydraulic unit: Composed of a double pump, discharge valves, clogged filter indication, and an air-oil heat exchanger.
• Control and automation: Managed via a Siemens S7 PLC with a backlit operator interface.

Technical Specifications:

• Shooting capacity:
  • Single: 18 Kg
  • Double: 35 Kg
  • Triple: 50 Kg
• Hopper capacity: 100 Kg
• Empty cycle time: 20 seconds
• Minimum compressed air pressure: 6 bar
• Minimum extraction flow rate: 1,500 Nmc/h

Dimensions:

• Maximum dimensions of vertically divided core box:
  • Length: 710 mm
  • Width: 250 + 250 mm
  • Height: 610 mm

Safety:

• Built according to European safety standards with CE marking and a certificate of conformity.
