Two axis fork core remover

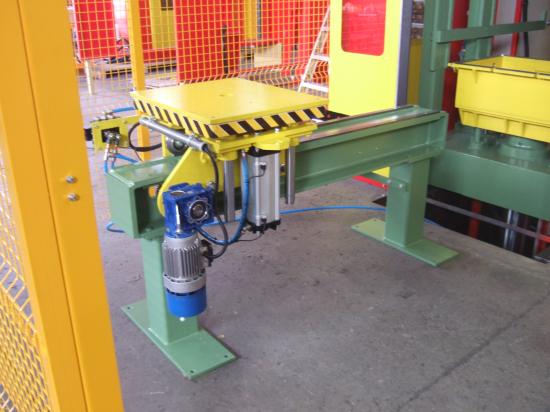

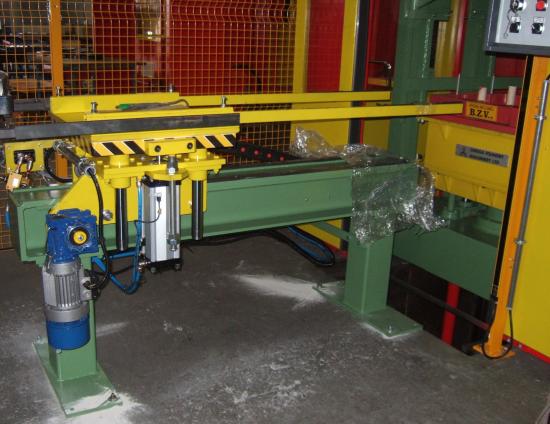

Two-Axis Core Picker

Technical Specifications:

• Maximum Stroke of Lifting Cylinders for Forks (Adjustable): 200 mm
• Lifting Force Generated by the Lifting Cylinders for Forks: 900 kg
• Maximum Height from the Ground of Fork Attachment Plane: 1126 mm
• Minimum Height from the Ground of Fork Attachment Plane: 926 mm
• Maximum Horizontal Stroke of Forks (Adjustable): 1000 mm
• Guide Pins for Pickup Fork: 4 units
• Diameter of Guide Pins for Pickup Fork: 40 mm
• Electric Motor with Auto-Braking for Fork Translation: 0.75 kW
• Dimensions of the Support Plane for the Pickup Fork: 600 mm x 510 mm
• Mounting Holes for Pickup Fork: 4 units
• Center-to-Center Distance of Mounting Holes for Pickup Fork: 540 mm x 450 mm
• Diameter of Mounting Holes for Pickup Fork: 12 mm (M12)

Overall Dimensions of the Picker (see Drawing 2.541):

• Length: 1738 mm
• Width: 660 mm
• Height: 1126 mm
